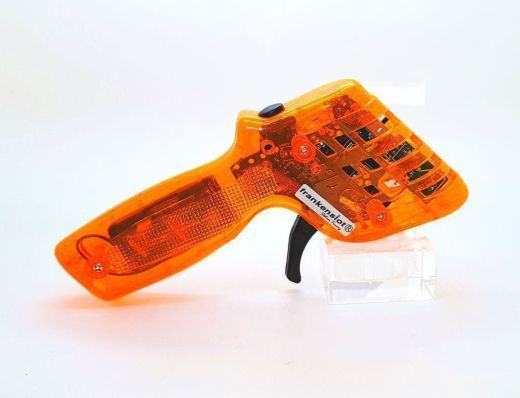

FS Speedflow Wireless Eco Wave V3.17 orange

1 Stück

Wireless Controller für das Carrera Digital System D132 / 124

jetzt mit neuem Triggerhebel für Ein- oder Zweifingerbetrieb - einfach austauschbar - ohne Reglerdemontage

der Regler arbeitet mit einem Microcontroller, alle Funktionen unserer Speedflow Controller Box sind in diesem Regler integriert.

Die Anbindung an das Carrera System erfolgt über den Carrera Wireless Empfänger (diesen haben sie ja meist schon erworben durch den Bahnkauf)

Betrieb über 2 handelsübliche Batterien der Baugröße AAA - es ist ein Dauerbetrieb von über 80  Stunden mit hochwertigen Batterien möglich

Der Regler besitzt einen EIN/AUS Schalter und eine LED Anzeige

Controller Gehäuse DS



SpeedFlow wireless controller  Eco Wave

Technical data

Run-time continuous operation	about 84 hours with 2 x Duracel industrial AAA
Survival in the standby	approx. 9 months
Power consumption when OFF	Real power separation. No consumption
Power consumption in standby	about 200 µA
Power consumption in operation	approx. 16 mA

Operating instructions

Setting the channel to use and connect with the receiver

Switch the controller off. Recipient select the desired channel to the Carrera. During power-up hold the switch button on the controller. Receiver acknowledges the programming with the "7-segment run". Controller ready to go.

The configuration mode

Control was connected with receiver. Switch the controller off. Regulator gas completely by pressing hold and hold switch button and then turn on controller. LED goes on. To let go of the switch button and trigger the configuration begins.

The configuration is done based on the SpeedFlow box programming

The selection of the desired configuration value is done by briefly pressing of the switch button. Storing the value selected is carried out by the LED hold acknowledged storing the Lanechange-button, to a rapid Flash. After that, the next configuration option is indicated by flashing. The following configuration options are available.

Number of speed levels

• 1 x Flash - original Carrera 16 speeds
• 3 x Flash - Speedflow regulation 30 speeds
• 4 x blinking - Speedflow Regulation 44 speed steps

Selection: press
Save: pressing, until LED flashes rapidly.

Launch control active or switched off

• 1 x deactivated
• 2 x flashing launch control is available

Selection: press
Save: pressing, until LED flashes rapidly.

Select performance curve

Here, the translation of the trigger position in the performance level of the car can be set. Specifies the number of flashes which curve is selected.

Selection: press
Save: pressing, until LED flashes rapidly.



hier finden Sie die Anleitung
